INDUTRIAL HOSE CRIMPING MACHINE MS-E38
DESCRIPTION
MS-E38 hose crimper is suitable for hydraulic high pressure or low pressure rubber hose from 1/4 to 2 inch 4SP pressing and making. It has compact structure, saving space during the transport. The crimping backward movement is controlled by the hydraulic system, stable and accurate.
The crimping master die is with double conical design, so the hose crimping machine can press the hose or tube with higher pressure and higher accuracy.
ADVANTAGES
► Support rubber pressure hose swaging from 1/4'' to 2'' with 4 layers;
► Crimping molds are with high hardness from HRC58 to HRC63;
► Hydraulic oil pump is with big flue, generate big crimping force;
► Hydraulic rubber hose assembly after crimping with no conical problem;
TECHNICAL DATA
| Model | MS-E38 Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | 38 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) |
| Motor Power | 3 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 600 (mm) |
| Weight | 200 (KG) |
E38 HYDRAULIC HOSE CRIMPING MACHINE DIE SETS
| Die No. | Crimping Range | Length |
| 6 * | 6 ... 8mm | 55mm |
| 8 * | 8 ... 10mm | 55mm |
| 10 * | 10 ... 12mm | 55mm |
| 12 * | 12 ... 14mm | 55mm |
| 14 | 14 ... 16mm | 60mm |
| 16 | 16 ... 20mm | 60mm |
| 20 | 20 ... 22mm | 60mm |
| 22 | 22 ... 26mm | 60mm |
| 26 | 26 ... 30mm | 70mm |
| 30 | 30 ... 38mm | 70mm |
| 38 | 38 ... 46mm | 70mm |
| 46 | 46 ... 54mm | 80mm |
| 54 | 54 ... 64mm | 80mm |
| 64 | 64 ... 69mm | 80mm |
| 69 * | 69 ... 74mm | 110mm |
| 74 * | 74 ... 78mm | 110mm |
| 78 * | 78 ... 87mm | 110mm |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
OPTIONAL
• UC control system
• Position limit device

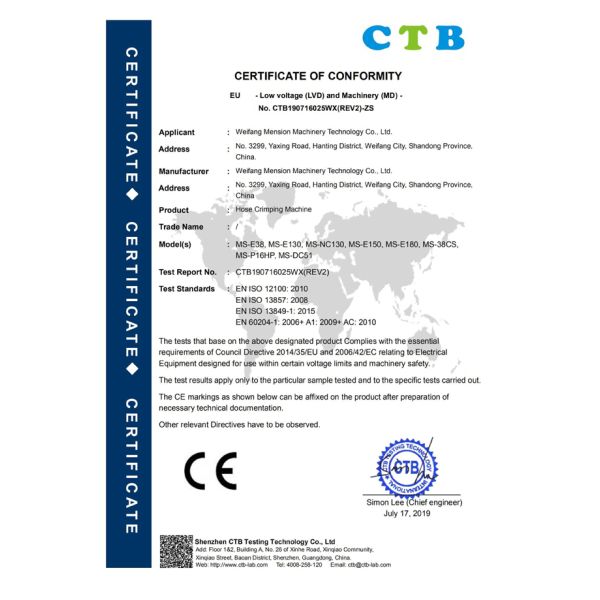

E38 HOSE PRESSING MACHINE IS WITH CE CERTIFICATE
ISO 9001 QUALITY CERTIFICATE FOR CABLE SWAGING MACHINE FROM MENSION
